Waveforms

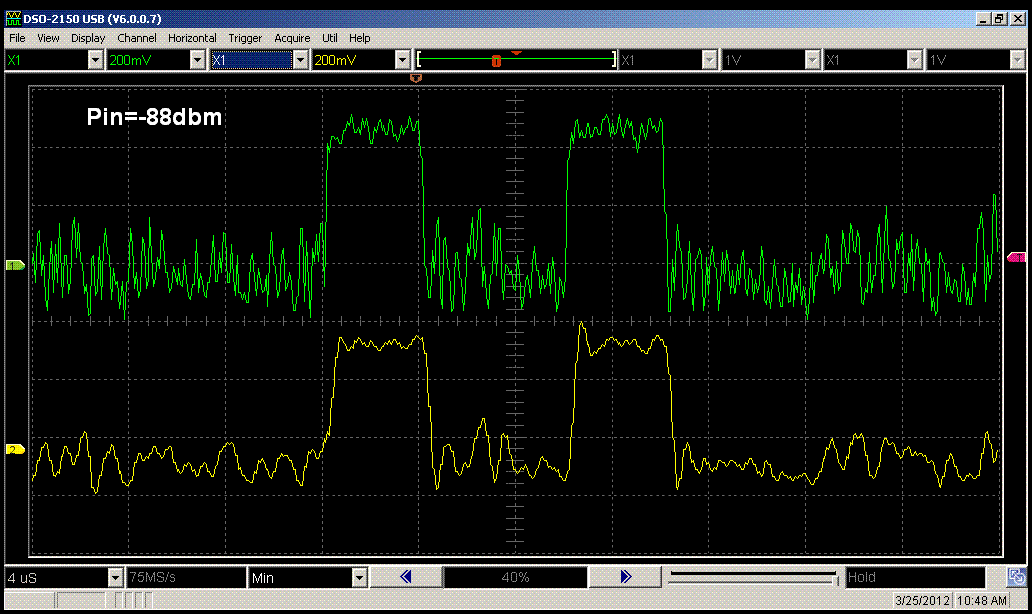

Waveforms for various levels of the input signal.

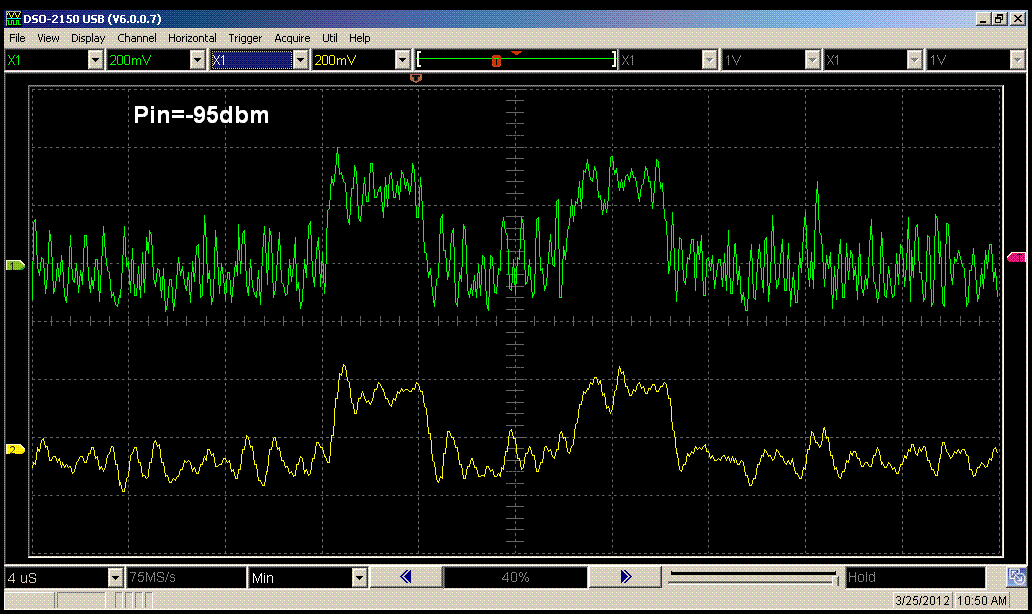

As you can see, the receiver works down to -95dbm. It's more sensitive than a typical secondary radar!

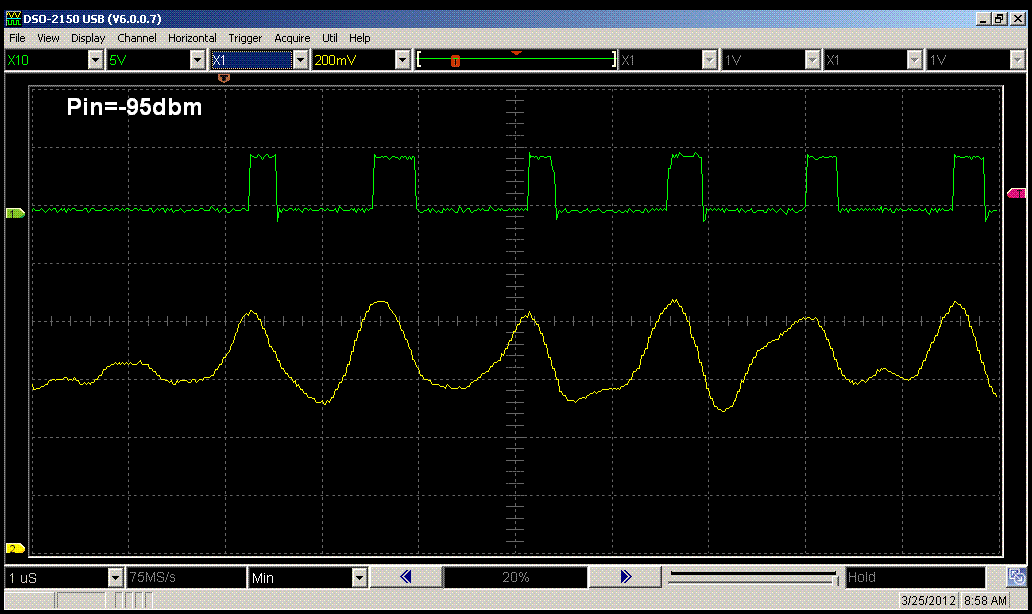

The green waveform is before the RLC filter; the yellow is after it.

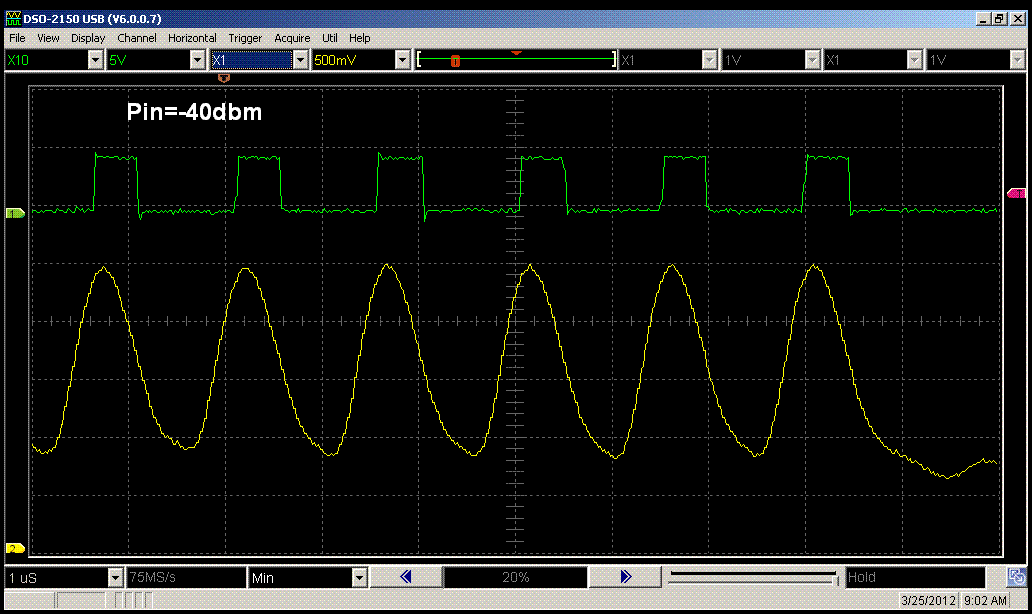

Detection of signals ( the detected signal is in green; the analogue is yellow )

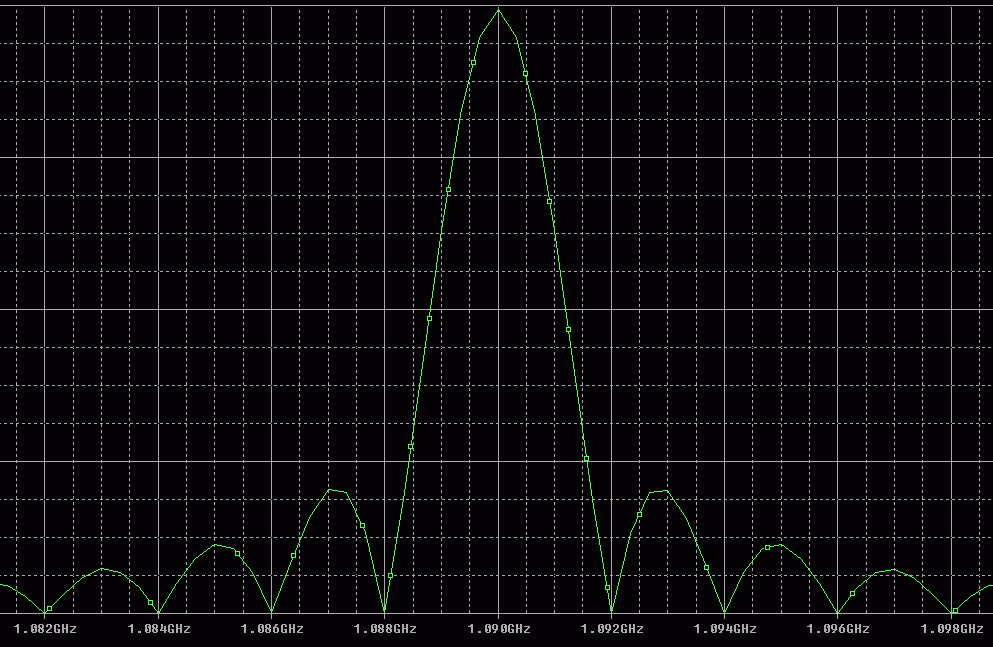

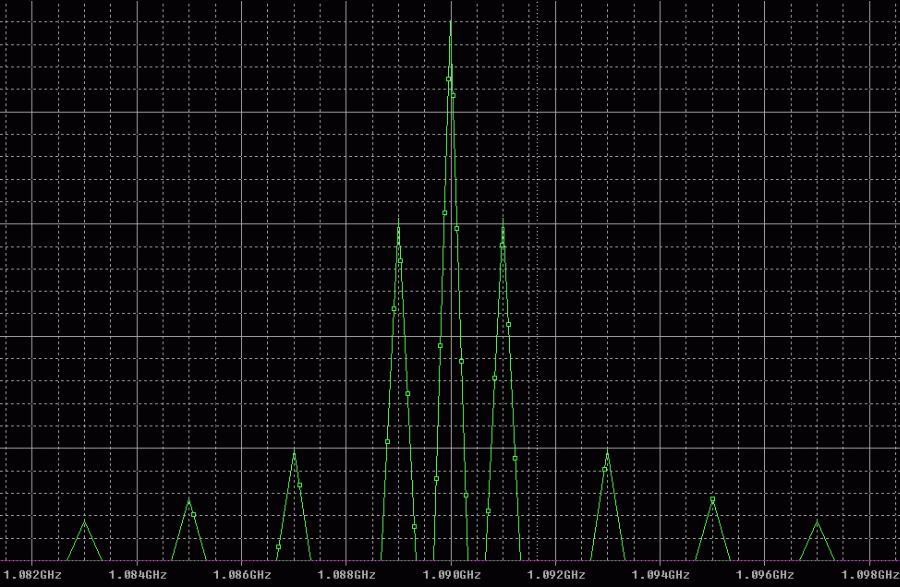

This is the spectrum of the ADS-B signal for various pulse rates  (simulated).
